Atmosphere Rotary Oxidation Furnace STR ARGF600-9

Atmosphere Rotary Oxidation Furnace

Model : STR ARGF600-9

Q'ty :

Description
Specifications

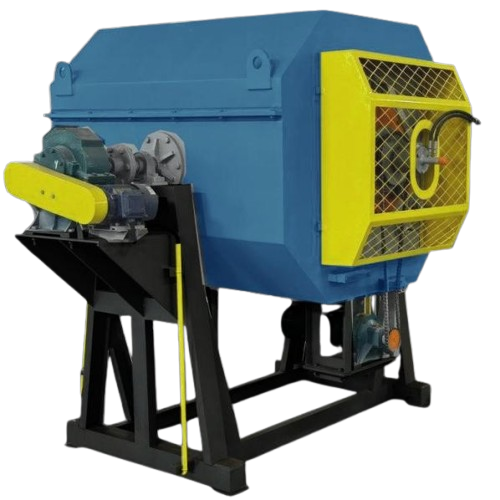

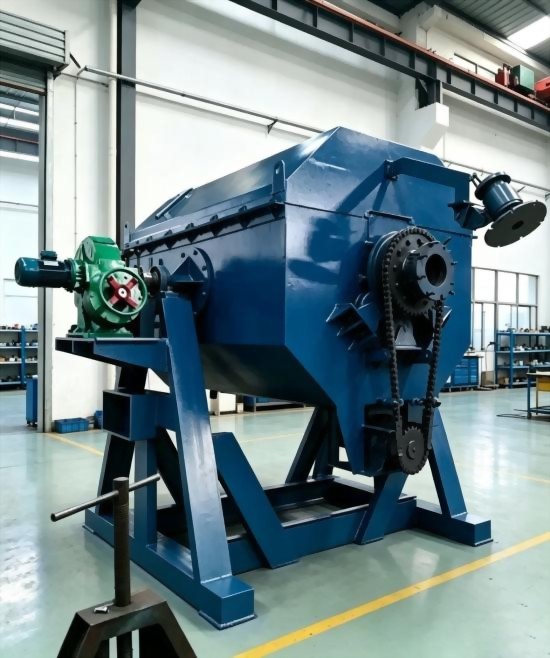

The rotary drum oxidation furnace is a tilting, rotary resistance furnace with both rotation and tilting functions. This rotary drum resistance furnace consists of a furnace body, rotation mechanism, tilting device, control system, and gas supply system. To facilitate the insertion and removal of the drum, the furnace shell is divided into an upper shell and a lower shell, both welded from angle steel and steel plates.

The furnace body is assembled from the main body, support frame, and bearing seats. The main body comprises the furnace shell, furnace lining, and furnace tank. For easy assembly, disassembly, and maintenance of the furnace tank, both ends are bolted together.

Serial Number	Name	Specifications
1	Equipment Name	Atmosphere Rotary Oxidation Furnace
2	English Name	STR ARGF600-9
3	Equipment Structure	Horizontal externally heated rotary drum structure, tiltable overall, equilateral hexagonal drum
4	Workpiece Material	Silver/silver-tungsten alloy, combined with powdered alumina powder (medium)
5	Workpiece Specifications	Wire/Powder/Small blocks, maximum weight per piece 5g
6	Total Load	50 kg (25 kg material + 25 kg alumina powder)
7	External Dimensions	Approx. L3000 × W1800 × H2200 mm
8	Drum Internal Dimensions	Inner Diameter Ø600 × Length 1200 mm (Cylindrical or equilateral hexagonal, inscribed circle diameter 600mm, subject to actual dimensions)
9	Drum Material	310S stainless steel (06Cr25Ni20), wall thickness ≥8mm
10	Maximum Operating Temperature	850°C
11	Operating Temperature	～850°C (Commonly Used)
