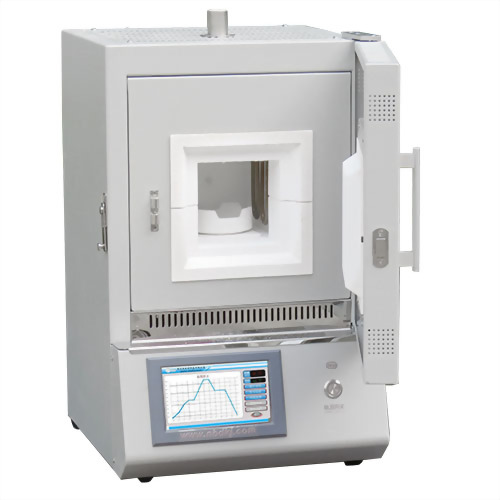

Intelligent box furnace 1700℃

Model : NBD-M1700-12TI / NBD-M1700-16TI / NBD-M1700-22TI

Features:

1. Double-layer air-cooling structure significantly reduces shell surface temperature;

2. Equipped with high-purity heating elements with excellent acid and corrosion resistance;

3. Refractory insulation material manufactured using a vacuum forming process minimizes heat loss and effectively reduces equipment power usage;

4. Modular structure ensures durability and easy maintenance;

5. An exhaust chimney on the furnace roof effectively removes volatiles generated during the sintering process;

6. Touchscreen operation with intuitive temperature curve display.

Equipment Model

NBD-M1700-12TI

NBD-M1700-16TI

NBD-M1700-22TI

Furnace Dimensions

120 × 120 × 120 mm

160 × 160 × 160 mm

220 × 220 × 260 mm

Electrical Specifications

AC220V  1.8KW

AC220V  4KW

AC220V  5KW

Net Weight

80KG

120KG

180KG

Achievable Temperature

1700℃

Continuous Temperature

1650℃

Heating Rate

1℃ / H-20℃ / Min

CE Certified

◎ Brand / NOBODY
