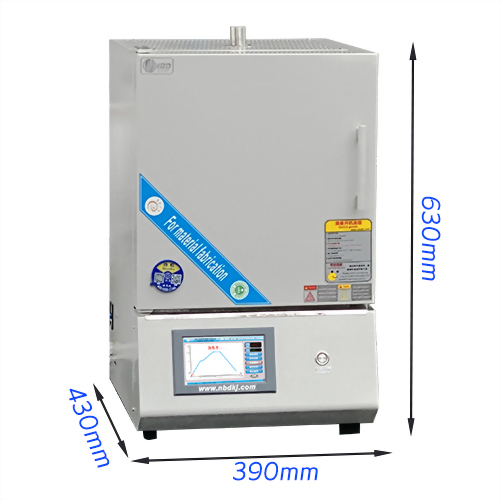

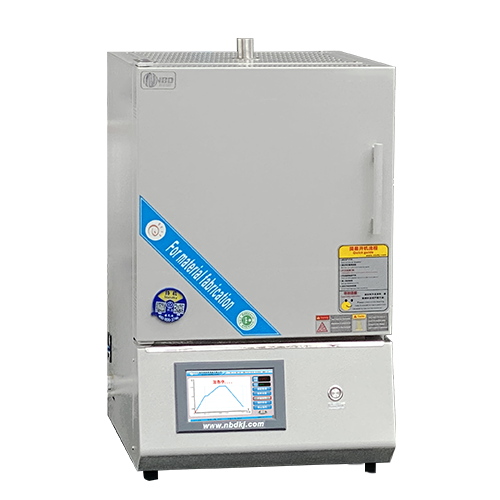

Intelligent box furnace 1500℃

Model : NBD-M1500-12TI / NBD-M1500-16TI / NBD-M1500-22TI

Features:

1. Double-layer air-cooling structure significantly reduces shell surface temperature;

2. Equipped with high-purity heating elements with excellent acid and corrosion resistance;

3. Advanced refractory and insulation materials minimize heat loss, effectively reducing equipment power usage;

4. Modular structure ensures durability and easy maintenance;

5. An exhaust chimney on the furnace top effectively removes volatiles generated during the sintering process;

6. Touchscreen operation with intuitive temperature curve display.

Product Model

NBD-M1500-12TI

NBD-M1500-16TI

NBD-M1500-22TI

Electrical Specifications

AC220V  1.5KW

AC220V  3KW

AC220V  3.5KW

Achievable Temperature

1500℃ (<1 hour)

Continuous Temperature

1450℃ (Continuous)

Achievable Heating Rate

≤20℃ / minute

Furnace Dimensions

120 × 120 × 120 mm

160 × 160 × 160 mm

220 × 220 × 260 mm

◎ CE Certified

◎ Brand / NOBODY
