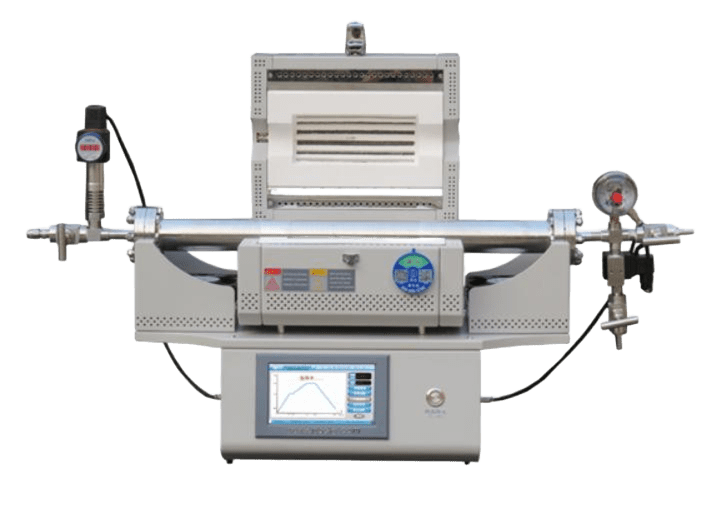

Tubular furnace (high temperature and high pressure type)
Equipment Introduction:
This high-temperature, high-pressure tubular furnace features a high-pressure solenoid valve and pressure sensor mounted on the flange. When the pressure inside the chamber exceeds the set value, the solenoid valve automatically opens to release gas, bringing the pressure back to the set level. This model allows for heat treatment of samples in a high-pressure atmosphere, with a maximum temperature of 1150℃. It is suitable for research in superconducting and dielectric materials.
Equipment Features:
1. Three layers of safety protection ensure worry-free operation;
2. High-temperature ring heater for uniform temperature distribution;
3. Modular structure for durability and easy maintenance;
4. Stabilized voltage setting for safety and reliability;
5. Simple and convenient one-button operation with 15 pre-stored working curves for flexible operation;
6. Real-time monitoring of sintering temperature and power for safety and energy saving.
|
Cavity Specifications |
1. 310S stainless steel high-temperature and high-pressure reaction tube 2. Dimensions: Outer diameter Φ50 mm × 600 mm, constant temperature zone inner diameter Φ23 mm × 120 mm
3. 1/4 NPS internal thread interface mounted on flanges on both sides of the furnace tube
|
||||||||||||
|
Furnace Structure |
1. Openable double-layer structure, beneficial for customers requiring rapid cooling; shell surface temperature less than 60℃ 2. Nano high-temperature alumina coating on the inner furnace surface improves heating efficiency
3. Openable furnace design for easy loading of materials and replacement of furnace tubes
|
||||||||||||
|
Basic Parameters |
1. Operating temperature: Dependent on gas pressure; please refer to the table below for details. 2. Heating length: 200 mm 3. Constant temperature length: 120 mm 4. Maximum power: 1.5KW 5. Voltage: AC 208-240V single phase 50/60 Hz (US voltage 120V)
6. Heating element: Molybdenum-doped iron-chromium-aluminum alloy
|
||||||||||||
|
Working pressure and corresponding temperature |
1. A constant pressure limit must be set for the chamber. The pressure should not exceed the limits in the table below at relative temperatures.
2. The high-temperature, high-pressure tubing is a consumable. Replace it immediately if you notice any deformation. |
||||||||||||
|
Equipment dimensions |
Approx. 800 x 450 x 350 mm |
||||||||||||
|
Net weight |
Approx. 45 Kg |
◎ CE certified
◎ Brand / NOBODY
