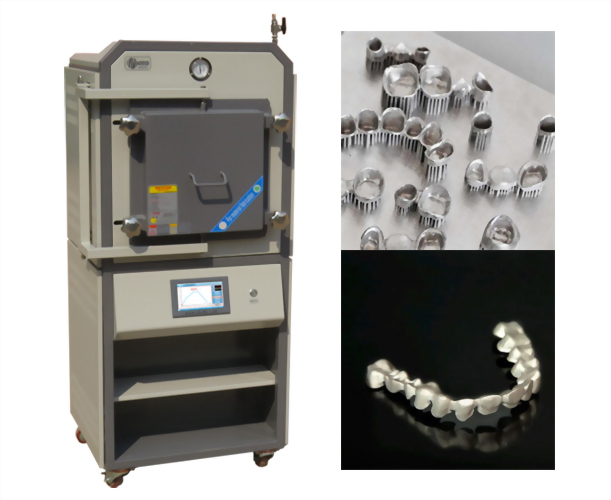

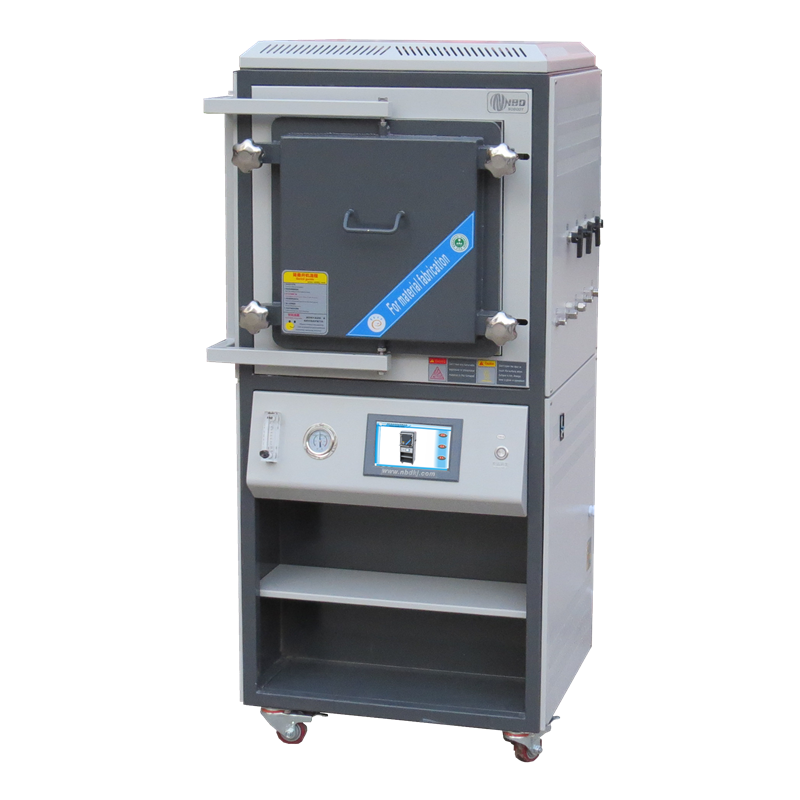

Vacuum heat treatment furnace (suitable for 3D printing)
Features：
1. Utilizing OR27A17M02, silicon-carbon, and silicon-molybdenum heating rods, the vacuum furnace features imported high-temperature reflective coating material, ensuring both uniform temperature and a pure heating chamber.
2. The vacuum furnace features a 7-inch touchscreen control panel with real-time curve acquisition, extensive expansion space, and support for device control and data storage using the Android operating system.
3. The vacuum furnace chamber is made of high-purity alumina fiber vacuum-adsorption, resulting in 60% energy savings compared to conventional products.
|
1 |
Product Model |
NBD-VA1200-20TI-D2F |
NBD-VA1500-20TI-D2F |
NBD-VA1700-20TI-D2F |
|
2 |
Control Mode |
7-inch Touchscreen |
||
|
3 |
Furnace Material |
Lightweight Alumina Fiber Refractory Insulation |
||
|
4 |
Heating Method |
Molybdenum-doped Iron-Chromium-Aluminum Alloy Heating Wire |
High-purity Silicon Carbide Rod |
High-purity Silicon-Molybdenum Rod |
|
5 |
Maximum Temperature |
1200 ℃ |
1500 ℃ |
1700 ℃ |
|
6 |
Operating Temperature |
≤1150 ℃ |
≤1450 ℃ |
≤1650 ℃ |
|
7 |
Heating Rate |
Recommended：10℃ / min |
||
|
8 |
Door Opening Mode |
Sliding Door |
||
|
9 |
Furnace Net Dimensions |
200 × 200 × 300 mm |
||
|
10 |
Sealing Method |
Vacuum silicone sealing flange |
||
|
11 |
Control Mode |
NBD-101E embedded operating system with English-Chinese compatible graphical interface, 7-inch color touchscreen input, intelligent human-computer interaction mode, real-time heating power display, and non-linear temperature correction. |
||
|
12 |
Temperature Control Accuracy |
±1℃ |
||
|
13 |
Temperature Curve |
Multiple "time-temperature curves" can be set |
||
|
14 |
Prestored Curves |
Up to 15 pre-stored temperature curves can be set |
||
|
15 |
Protection Settings |
Overtemperature alarm, overcurrent protection, and burnout alarm |
||
|
16 |
Gas Supply System |
Two-way float flowmeter (with mixing system), 60 to 600 ml/min |
||
|
17 |
Temperature Measuring Element |
K-type thermocouple |
S-type thermocouple |
B-type thermocouple |
|
18 |
Electrical Certification |
CE Certification |
||
|
19 |
Power Supply |
220V 50/60Hz |
||
|
20 |
Power |
5KW |
||
|
21 |
Dimensions |
L 650 × H 1540 × D 600 mm |
||
|
22 |
Packaging |
Export packaging in a fumigation-free wooden box |
||
|
23 |
Accessories |
Plug, O-ring, tools, instruction manual. |
||
|
24 |
Optional |
1. External Android tablet operation recording system; 2. Proton flow control system;
3. Molecular pump high vacuum control system
|
||
◎ Brand / NOBODY
