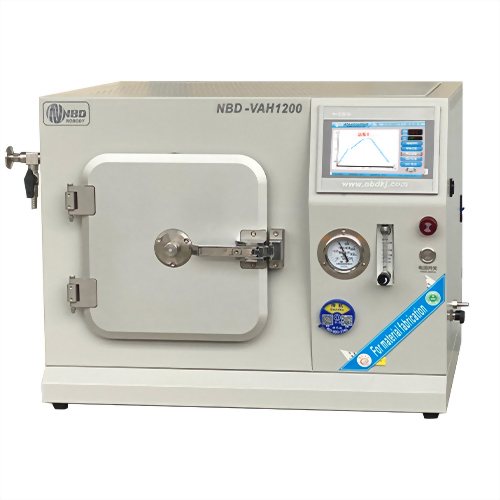

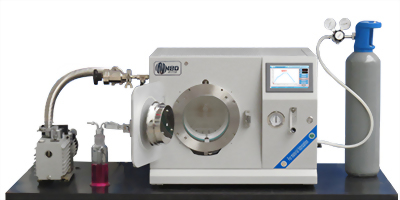

Large capacity tubular furnace (controlled vacuum atmosphere type)

Model : NBD-VAH1200-20TIF

Features:

1. Double-layer insulation with air-cooled interlayer;

2. High-purity Al2O3 fiber refractory insulation material for maximum energy savings;

3. High-purity alumina coating on the refractory hearth extends service life;

4. High-purity quartz plugs allow you to create a customized temperature gradient within the tube.

5. Comprehensive protection against over-temperature, short-circuiting, and cooling water interruption for worry-free safety!

6. Interchangeable temperature measurement port and observation window (selectable).

Product Model

NBD-VAH1200-20TIF

Electrical Specifications

AC220V / 4KW

Available Temperature

1150 <1 hour

Long-Term Operating Temperature Range

300 ~ 1150

Heating Rate

1 / H-20 / Min

Heating Zone Dimensions

Φ190 mm × 200 mm

Cavity Shelf

Double-layer

◎ CE Certified

◎ Brand / NOBODY
