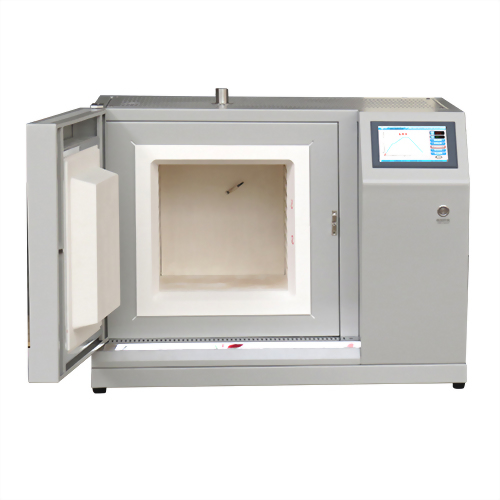

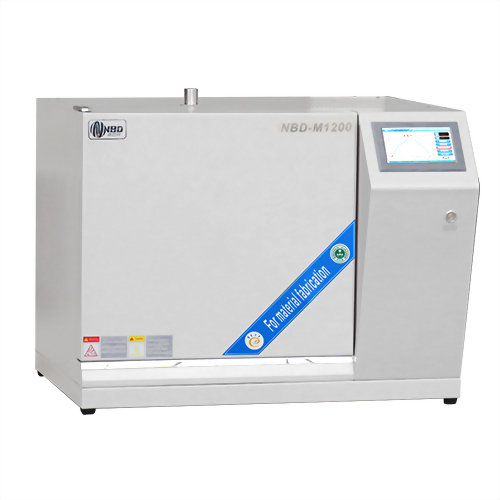

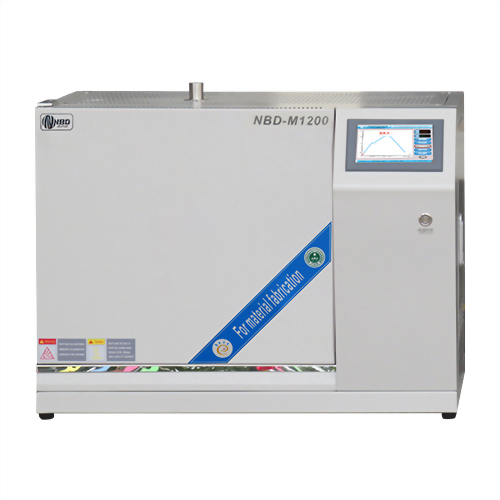

High temperature furnace (27L) 1200℃
Model :
NBD-M1200-30TI(B型)
Features：
1. The furnace chamber is moderately sized, suitable for heat treatment of a variety of materials.2. Utilizing advanced refractory insulation materials, heat loss is minimized, effectively reducing equipment power usage.
3. Modular construction ensures durability and ease of maintenance.
4. An exhaust chimney is installed on the furnace roof to effectively remove volatiles generated during the sintering process.
5. Touchscreen operation provides intuitive temperature curve display.
|
Product Model |
NBD-M1200-30TI (Type B) |
|
Maximum Temperature |
1200℃ |
|
Rated Power |
7 KW |
|
Sensor Type |
K-Type Thermocouple |
|
Long-Term Operating Temperature Range |
300 ~ 1150℃ |
|
Heating Rate |
1°C / hour - 20°C / minute |
|
Furnace Dimensions |
300mm W × 300mm H × 300mm D |
|
External Dimensions |
860mm L × 650mm H × 670mm W |
◎ CE Certified
◎ Brand: NOBODY
