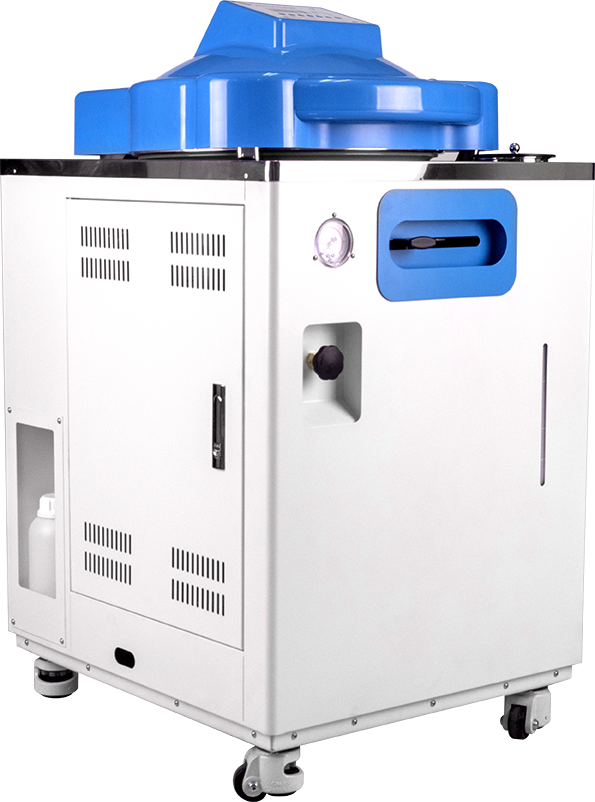

Autoclave (programmable) SJ-AD
Features
Multiple sterilization modes: Meet diverse sterilization needs.
Five-stage memory slot: Quickly select frequently used programs.
Lever-type door lock: Easy to operate and ensures safety.
Advanced control system: Precisely controls the sterilization process.
Applications:
Biological and life science laboratories, medical institutions, food production, veterinary medicine, etc.
|
Spec / Model |
SJ-AD60 |
SJ-AD80 |
SJ-AD100 |
|
Type |
Fully Automatic Type |
||
|
Chamber Type |
Round Vertical Type |
||
|
Capacity |
62ℓ |
81ℓ |
106ℓ |
|
In Size (ØxH) mm |
350x650 |
400x650 |
400x850 |
|
Dimension (WxDxH) mm |
600x675x1,100 (About) |
600x675x1,100 (About) |
600x675x1,250 (About) |
|
Heater Capacity |
3kw |
4kw |
4kw |
|
Temp. Range |
Ambient to 135℃ |
||
|
Controller |
LCD & LED Microprocessor Programmable Control |
||
|
Sensor |
Pt-100Ω (Exclusively for Sterilizing, Auto Tuning) |
||
|
Time Range |
99Hours 59min Digital Display |
||
|
Accuracy |
±0.5℃ |
||
|
Material IN |
Stainless Steel 304 |
||
|
Material OUT |
SS41 Steel Plate and Powder Coating |
||
|
Door System |
One Touch Lever Type (Hook Type) |
||
|
Basket |
Stainless Steel (#304) Manufactured for Sterilizing / 2ea |
||
|
Pressure Range |
0~3kg/㎠ |
||
|
Using Pressure |
0~2kg/㎠ |
||
|
Wheel |
Retractable Leveling Caster |
||
|
Electronic Power |
AC 220V, 50-60Hz Single-Phase |
||
|
Safety Device |
Water Level Sensor / Safety Door Interlock / Door Lock Detection / Over-Pressure Prevention / Manual Steam Valve / Over-Heat Prevention / Open temp. Sensor Detection / Safety Valve / Steam Cooling Discharge Method / Buzzer Alarm / etc. |
||
